The Vetro Tooling fully automatic drilling machine VT100 drill adopts a time relay controller and oil buff technology. The centring of a drill hole can be positioned using a mechanical method or laser. Pneumatic clamper grip glass with adjustable pressure. The VT100 has two working statuses: manual & automatic. In manual mode, the machine only works one cycle. In automatic mode, the machine works continuously. The machine is characterised by its high working efficiency, low glass damage, and easy operation. The VT100 uses standard Conti fit drills.

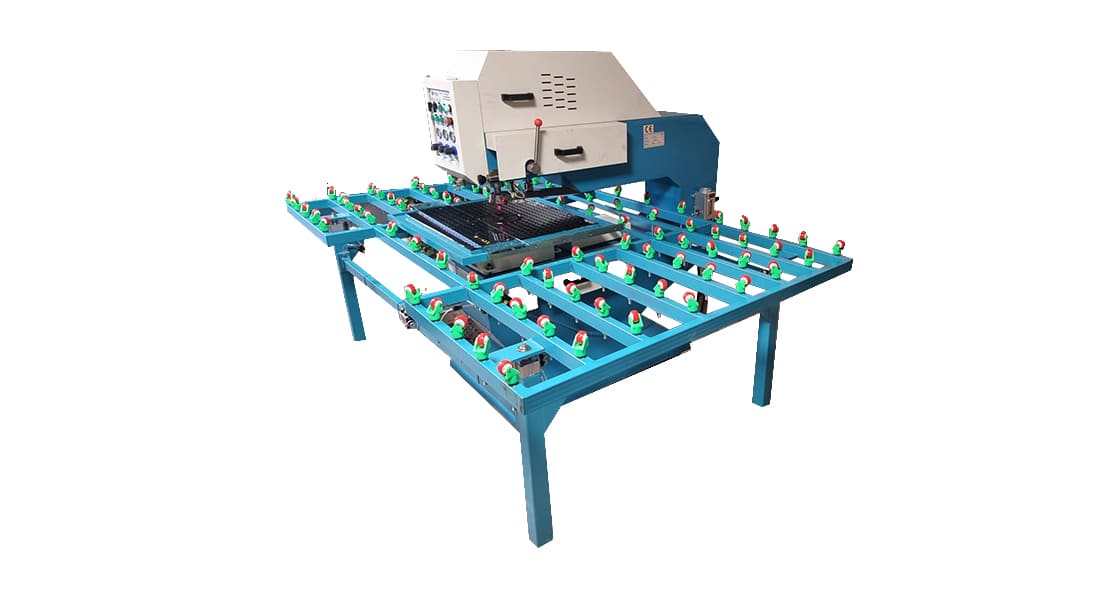

VT100 Glass Drilling Machine
1, Diameter of holes = 4-100mm
2, Drill Type = Conti Fit
3, Max Distance from hole centre to frame = 1000mm
A very cost-effective double-headed drilling machine perfect for small to medium glass processors.
Request Product Info
• The VT100 has 2 working spindles, making the hole in the glass from top to bottom.
• The VT100 can work in manual mode and automatic mode. In manual mode, each spindle can be controlled by its own on/off switch. In automatic mode, the machine
works automatically to finish one hole without any human intervention after pressing the start button.
• This VT100 adopts timing relay controller and oil buff technology. The time interval of spindle action and pressor action can be set through timing relay.

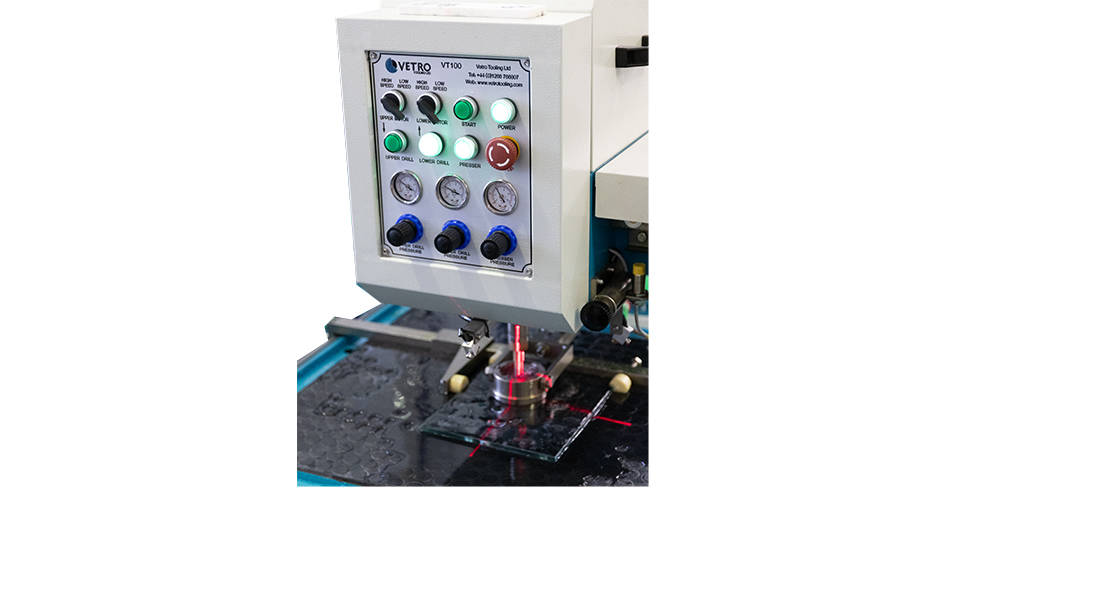

• The centering of drill hole can be positioned by means of mechanical method or laser.
• Pneumatic clamper grip glass with adjustable pressure.
• The VT100 is featured by its high working efficiency, low glass damage and easy operation.
Machine install at Empire of Glass 2024
